John Deere 50G



BrandJohn Deere

Book Your Test Drive Now!

Questions about this product?

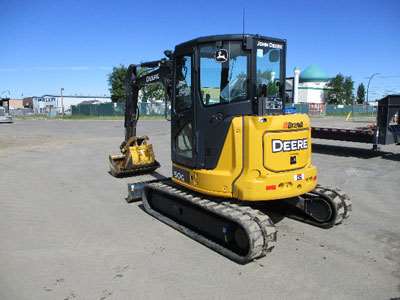

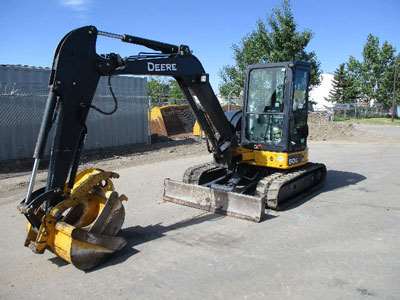

John Deere 50G mini excavator for sale: 1500 hours, serial no. 1FF050GXHEH281901. Comes with blade,  thumb, cab with heat & A/C, short stick, quick change, 2 buckets (dig & cleanup). 4 year / 3000 hour full machine warranty good until March 2019.

Purchased brand new from Brandt Tractor. Transferable John Deere Factory Extended Full-Machine Warranty (warranty transfer fees may apply).












Emission Rating
Tier 4
Engine Make / Engine Model
Yanmar / 4 TNV 88
Net Power, kW (hp) @ Rated rpm
26.8 (35.9) @ 2400
Displacement, L (cu in)
2.19 (134)


Pump Type
Variable axial piston
Total Pump Flow, L/m (gpm)
120 (31.7)
Auxilliary Hyd. Max Flow Rate, L/m (gpm)
87.4 (23.1)


Track Width, mm (in)
400 (16)
Overall Track Length, mm (ft)
2500 (8 ft 2 in)
Ground Clearance, mm (in)
340 (13)
Width Over Std Track, mm (ft)
2000 (6 ft 7 in)
Ground Pressure, Std. Track, kPa (psi)
not published
Max. Travel Speed – fwd, kph (mph)
4.2 (2.6)


Blade Width, mm (ft)
2000 (6 ft 7 in)
Blade Height, mm (ft)
375 (15)
Blade Max Lift Above Grd. Level, mm (in)
460 (18)
Blade Max Lift Below Grd. Level, mm (in)
360 (14)


Standard Arm, mm (ft in)
1380 (4 ft 6 in)
Max. Digging Height w/Std Arm, mm (ft)
5750 (18 ft 10 in)
Max. Digging Depth w/Std Arm, mm (ft)
3530 (11 ft 7 in)
Max. Digging Reach w/Std Arm, mm (ft)
Max. Dump Height w/Std Arm, mm (ft)
4070 (13 ft 4 in)
Min. Front Swing Radius, mm (ft in)
2210 (7 ft 3 in)
Boom Swing Angle – left, deg
Boom Swing Angle – right, deg
Lift Cap. Over Front @ 10′ G.L. (incl bckt), kg (lb)
2511 (5531)
Lift Cap. Over Side @ 10′ G.L. (incl bckt), kg (lb)
1150 (2534)
Max Arm Digging Force, kN (lb)
24 (5401)
Max Bucket Digging Force, kN (lb)
36.8 (8267)
Tail Swing Radius, mm (ft in)
1000 (3 ft 3 in)
Swing Speed, rpm


Transport Length, mm (ft)
5470 (17 ft 11 in)
Transport Height, mm (ft)
2530 (8 ft 4 in)
Transport Width, mm (ft)
2000 (6 ft 7 in)


Fuel Tank, L (gal)
not published
Hydraulic Reservoir, L (gal)
not published


SAE Operating Weight, kg (lb)
4920 (10847)

Questions and answers

We’re proud to sell loaders from the most reliable heavy equipment manufacturers in the industry. We only buy and sell from trusted names like John Deere, Caterpillar, Kubota, Komastu, Morooka, Hyundai, Volvo, CASE, Honda, Yanmar, Ditch Witch, and JCB.

Yes, we can arrange for delivery of mini excavators to your worksite. Let us know what date you need the heavy equipment to arrive and we will contact you with details.

SmartCast Equipment is the authorized equipment manager for Rent1 Inc. who provides equipment services and rentals throughout Canada and the U.S. The objective of Rent1 Inc. is to maintain the most modern heavy equipment fleet for their customers, and so they will normally sell equipment before they reach 2 years of age. This provides us the means to sell newer models, in many cases with light usage and low hours.

Through our heavy equipment service partner TekamoHD Equipment Services, we service all of our used construction equipment for sale to ensure its longevity. Aside from daily maintenance recommendations, you shouldn’t have to worry about equipment maintenance for hundreds of hours after your purchase.

Many of our used mini excavators for sale have transferable warranties available from the manufacturer. We will generally list any available extended warranties on our used equipment for sale but we encourage you to ask when you speak with our sales team.

Our mini excavators for sale come directly from reliable local dealerships, authorized by the heavy equipment manufacturers. These dealerships include Brandt Tractor, Finning, Morooka USA, Avenue Machinery, SMS Equipment, and others.

We have connections with equipment financing companies and will help you find the best rates available on any heavy equipment purchase. If you need assistance, just ask us during your purchase — getting you the best rate available is more important to us than receiving kick-backs.
